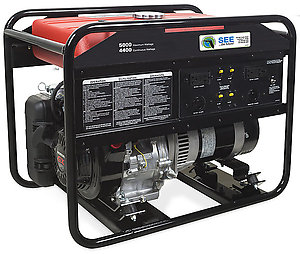

GEN-5000-0MH0

Engine: Honda GX270 OHV low-oil shutdown engine

Alternator: Brushless 120V/240V alternator · Total harmonic distortion (THD) less than 5% · 100% copper windings

Frame: Low profile, compact design · Angled isolator design features four neoprene isolators · Heavy-duty wraparound frame with 1-inch powder coated steel tubing

Components: Easy-to-read fuel gauge · Fuel shutoff valve · Full power switch · Fuel tanks are powder coated outside, zinc-plated inside to prevent rusting · Heavy-duty industrial air cleaners hold up under extreme conditions · Large low-tone mufflers to reduce noise to lowest level possible · Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles

Miscellaneous: USDA/USFS-approved spark arrestors · Circuit breaker protected

Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.

Specifications

Maximum AC Output	5000 watts
Rated AC Output	4400 watts
Displacement/Engine	270cc Honda GX270 OHV
Alternator	Brushless 120V/240V, 60Hz
Maximum Amps (120V/240V)	41.7/20.8
Continuous Amps (120V/240V)	36.7/18.3
Receptacles	(2) 120V 20A GFCI duplex; (1) 120V 30A twist lock; (1) 120V/240V 20A twist lock
Circuit Breakers	(2) 20A toggle circuit breaker, single pole; (1) 20A toggle circuit breaker, double pole; (1) 30A toggle circuit breaker, single pole
Rated Speed	3600 RPM
Decibel Rating	73.8
Fuel Capacity	5.7 gallon
Run Time (at full load)	6.8 hours
Fuel Shut-Off Valve	Yes
Fuel Gauge	Yes, easy-to-read
Full Power Switch	Yes
