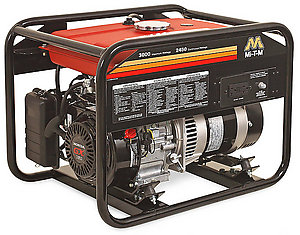

3000 Watt Gasoline GEN-3000-1MH0
GEN-3000-1MH0
Engine: Honda GX160 OHV low-oil shutdown engine
Alternator: Brushless 120V alternator · Total harmonic distortion (THD) less than 5% · 100% copper windings
Frame: Low profile, compact design · Angled isolator design features four neoprene isolators · Heavy-duty wraparound frame with 1-inch powder coated steel tubing
Components: Fuel shutoff valve · Heavy-duty industrial air cleaners hold up under extreme conditions · Large low-tone mufflers to reduce noise to lowest level possible · Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles · Large capacity fuel tank for extended run time
Miscellaneous: USDA/USFS-approved spark arrestors · Circuit breaker protected
Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.
Specifications
| Maximum AC Output | 3000 watts |
| Rated AC Output | 2450 watts |
| Displacement/Engine | 163cc Honda GX160 OHV |
| Alternator | Brushless 120V, 60Hz |
| Maximum Amps (120V/240V) | 25.0 |
| Continuous Amps (120V/240V) | 20.4 |
| Receptacles | (1) 120V, 20A GFCI duplex |
| Circuit Breakers | (1) 20A push-button |
| Rated Speed | 3600 RPM |
| Decibel Rating | 74.8 |
| Fuel Capacity | 2.6 gallon, large capacity tank |
| Run Time (at full load) | 7.4 hours |
| Fuel Shut-Off Valve | Yes |
| Fuel Gauge | No |
| Full Power Switch | No |
Weights & Dimensions
| Net Weight | 130.00 lbs. |
| Shipping Weight | 146.00 lbs. |
| Length | 25.00 in. |
| Width | 18.00 in. |
| Height | 18.00 in. |
