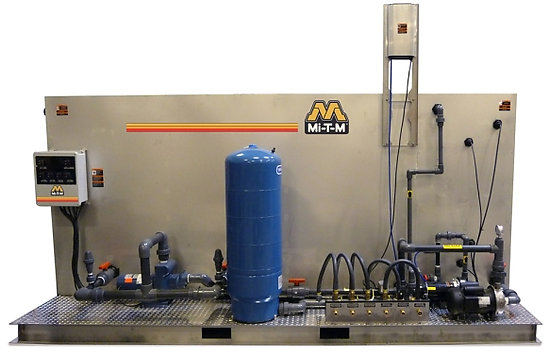

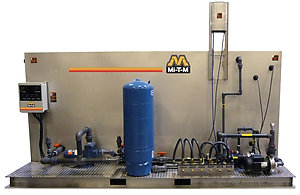

Biological Recycle Systems BIO-35R Series - Water Treatment Systems

BIO-35R Series

This Water Treatment System separates water, grass and heavy debris

Mi-T-M’s popular BIO Series System utilizes fixed-film bacteria in conjunction with coalescing media. Various tank sizes and flow rates are used to create retention time for the treatment of wastewater streams. Oxygen is supplied to the bacteria in the waste stream by venturi injection.

This system offers models available for Recycle Operations. Each unit offers added benefits, such as:

·Lower maintenance than any recycle system on the market today
·Low operating costs
·Simple equipmen operation
·CSA approved control panel which meets the requirements of the US and Canadian standards for an Industrial Control Panel

The BIO Series is perfect for the following applications:

·Rental yards
·Heavy equipment dealers
·Trucking facilities
·Truck rental fleets
·Diesel repair facilities
·Forklift washing operations
·Aircraft maintenance and restoration
·Shipyards
·Municipalities/State DOTs
·Oil fields
·Engine rebuilders and manufacturers
·Military bases
·Golf courses
·and many more...

Components:

·CSA listed NEMA-4 rated corrosion-proof control panel for safe and reliable operation
·Hose connectors are designed for easy accessibility and quick installation, the connectors are clearly marked
·Mazzei venturi air injection system sustains beneficial aerobic microbes, while destroying odor causing anaerobic bacteria
·1/2 HP surface mount sump pump
·Bioreaction tank where untreated waste water is mixed with microbes
·Biofilm generative media where microbes treat the water
·Aeration system injects large amount of oxygen in the waste water
·A pressurized tank and pump deliver up to 35 GPM of recycled water to three outlet ports
·New, more durable "True Union" Fittings
·Slope bottom tanks are now standard on Bio-20, Bio-25 & Bio-35 Models
·New style transfer pumps and aeration pumps

Models Available:

BIO-35R-0M10  230V, 1Ø, 25.0A  Marine Aluminum
BIO-35R-1M10  230V, 1Ø, 25.0A  Stainless-steel
BIO-35R-0M30  230V, 3Ø, 15.0A  Marine Aluminum
BIO-35R-1M30  230V, 3Ø, 15.0A  Stainless-steel

Once equipment is washed, the untreated wash-water flows into your pit system. A proper pit system for your application is the first step in proper wash-water treatment, and a critical element in any wash-water recycle system. See our In-ground Fiberglass Pit System for more information or contact Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best with your application.

230/20/460V 3-phase available.
Power requirements reflect pump change.

Specifications

Flow Rate 0-35 GPM
Biological Media 6480 sq. ft.
Tank Capacity 2244-gallon
Sump Pump (Included) 1/2 HP
Transfer Pump 2.0 HP

Weights & Dimensions

Net Weight 0.00 lbs.
Shipping Weight 1900.00 lbs.
Length 144.00 in.
Width 84.00 in.
Height 60.00 in.

pH Control System, 230V WX-0037

For when pH adjustment is needed

Pinch Valve Assembly WX-0014

Pinch valve, bladder style (used on cone-bottom tanks), 2-inch, 230VAC, single phase, may be accommodated as 115VAC, single phase

BIO Sump Pump Swap WX-0100

Customized option, converts submersible pump to surface-mount sump pump

Ozone WX-0015

For specialized applications where sterilization of the waste stream is desired

550-Gallon Product Tank Expansion WX-0029

For when larger volume of usable water is needed

Tank Heater WX-0031

Promotes heat for microbes, powered from main box, additional 20A required

Pinch Valve Assembly WX-0039

 Pinch valve, bladder style (used on cone-bottom tanks), 2-inch, 120VAC, single phase

pH Control System, 120V WX-0102

For when pH adjustment is needed

Magnetic Drive Pump WX-0073

230V, 1Ø, seal-less pump

Magnetic Drive Pump WX-0074

208-230V, 3Ø, seal-less pump

Magnetic Drive Pump WX-0075

460V, 3Ø, seal-less pump

Epoxy-Lined Tank WX-0127

High solid polyamide epoxy-lined tank is chemical and corrosion resistant

High Solids Media WX-0122

Allows for debris to travel easily through media with vertical design

Hour Meter WX-0128

Displays the number of hours unit has been in operation
