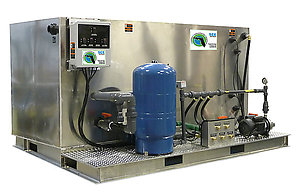

Biological Discharge/Recycle Systems BIO-20 Series

BIO-20 Series

Separates water, grass and heavy debris.

Mi-T-M’s popular BIO Series System utilizes fixed-film bacteria in conjunction with coalescing media. Various tank sizes and flow rates are used to create retention time for the treatment of wastewater streams. Oxygen is supplied to the bacteria in the waste stream by venturi injection.

This system offers models available for Recycle or Discharge Operations. Each unit offers added benefits, such as:

·Lower maintenance than any recycle system on the market today
·Low operating costs
·Simple equipment operation
·CSA approved control panel which meets the requirements of the US and Canadian standards for an Industrial Control Panel

The BIO Series is perfect for the following applications:

·Rental yards
·Heavy equipment dealers
·Trucking facilities
·Truck rental fleets
·Diesel repair facilities
·Forklift washing operations
·Aircraft maintenance and restoration
·Shipyards
·Municipalities/State DOTs
·Oil fields
·Engine rebuilders and manufacturers
·Military bases
·Golf courses
·and many more...

Components:

·CSA listed NEMA-4 rated corrosion-proof control panel for safe and reliable operation
·Hose connectors are designed for easy accessibility and quick installation, the connectors are clearly marked
·Mazzei venturi air injection system sustains beneficial aerobic microbes, while destroying odor causing anaerobic bacteria
·1/2 HP surface mount sump pump
·Bioreaction tank where untreated waste water is mixed with microbes
·Biofilm generative media where microbes treat the water
·Aeration system injects large amount of oxygen in the waste water
·A pressurized tank and pump deliver up to 35 GPM of recycled water to three outlet ports
·2.0 HP transfer pump on recycle systems
·Pressure manifold set-up option for BIO-20R-0M11 & BIO-20R-1M11
·New, More Durable "True Union" Fittings
·Slope bottom tanks are now standard on BIO-20, BIO-25 & BIO-35 Models
·New style transfer pumps and aeration pumps

Models Available:

BIO-20D-0M10  230V, 1Ø, 15.0A  Marine Aluminum  Discharge System
BIO-20D-1M10  230V, 1Ø, 15.0A  Stainless-Steel          Discharge System
BIO-20D-0M30  230V, 3Ø, 10.0A  Marine Aluminum  Discharge System
BIO-20D-1M30  230V, 3Ø, 10.0A  Stainless-Steel          Discharge System

BIO-20R-0M10  230V, 1Ø, 25.0A  Marine Aluminum  Recycle System
BIO-20R-1M10  230V, 1Ø, 25.0A  Stainless-Steel          Recycle System
BIO-20R-0M30  230V, 3Ø, 15.0A  Marine Aluminum  Recycle System
BIO-20R-1M30  230V, 3Ø, 15.0A  Stainless-Steel          Recycle System
BIO-20R-0M11  230V, 1Ø, 25.0A  Marine Aluminum  Recycle System
BIO-20R-1M11  230V, 1Ø, 25.0A  Stainless-Steel          Recycle System
BIO-20R-0M31  230V, 3Ø, 15.0A  Marine Aluminum  Recycle System
BIO-20R-1M31  230V, 3Ø, 15.0A  Stainless-Steel          Recycle System

Once equipment is washed, the untreated wash-water flows into your pit system. A proper pit system for your application is the first step in proper wash-water treatment, and a critical element in any wash-water recycle system. See our In-ground Fiberglass Pit System for more information or contact Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best with your application.

D – Designates Discharge / R – Designates Recycle
230/208/460V 3-phase available.
Power requirements reflect pump change.

Specifications

Flow Rate 0-20 GPM
Biological Media 2304 sq. ft.
Tank Capacity 890-gallon
Sump Pump (Included) 1/2 HP

Weights & Dimensions

Net Weight 0.00 lbs.
Shipping Weight 1092.00 lbs.
Length 96.00 in.
Width 72.00 in.
Height 48.00 in.

pH Control System, 230V WX-0037

For when pH adjustment is needed

Pinch Valve Assembly WX-0014

Pinch valve, bladder style (used on cone-bottom tanks), 2-inch, 230VAC, single phase, may be accommodated as 115VAC, single phase

BIO Sump Pump Swap WX-0100

Customized option, converts submersible pump to surface-mount sump pump

550-Gallon Product Tank Expansion WX-0029

For when larger volume of usable water is needed

Tank Heater WX-0031

Promotes heat for microbes, powered from main box, additional 20A required

Ozone WX-0040

For specialized applications where sterilization of the waste stream is desired

Ozone WX-0089

For specialized applications where sterilization of the waste stream is desired

Pinch Valve Assembly WX-0039

 Pinch valve, bladder style (used on cone-bottom tanks), 2-inch, 120VAC, single phase

pH Control System, 120V WX-0102

For when pH adjustment is needed

Magnetic Drive Pump WX-0067

230V, 1Ø seal-less pump

Magnetic Drive Pump WX-0068

208-230V, 3Ø, seal-less pump

Magnetic Drive Pump WX-0069

460V, 3Ø, seal-less pump

Magnetic Drive Pump WX-0070

230V, 1Ø, seal-less pump

Magnetic Drive Pump WX-0071

208-230V, 3Ø, seal-less pump

Magnetic Drive Pump WX-0072

460V, 3Ø, seal-less pump

Epoxy-Lined Tank WX-0124

High solid polyamide epoxy-lined tanks is chemical and corrosion resistant

Epoxy-Lined Tank WX-0125

High solid polyamide epoxy-lined tank is chemical and corrosion resistant

High Solids Media WX-0120

Allows for debris to travel easily through media with vertical design

Hour Meter WX-0128

Displays the number of hours unit has been in operation
