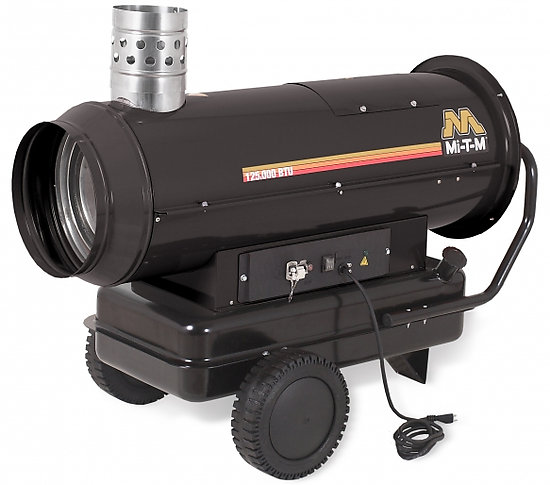

Kerosene Indirect Ductable MH-0125-0MIH
MH-0125-0MIH
Frame: Powder coated steel frame, handle and tank · Heavy-duty tires for easy mobility · Front foot brace · Rugged steel body
Burner: Stainless-steel combustion chamber · Direct spark ignition
Motor: Heavy-duty, high quality cast aluminum electric motor
Components: Safety switch prevents overheating · Suitable for air ducting · Easy to operate controls · High capacity fuel tank · Electronic flame control · Automatic ignition · Water resistant control box · Automatic fuel shut-off · High thermal efficiency · Control panel with thermostat plug, reset push button and safety air pressure switch · High pressure fuel pump · Vacuum sensor helps prevent heater lock out · Heated fuel filter for more reliable starts in subzero temperatures
Functions on: Kerosene or No. 1 and No. 2 fuel oil.
For use on construction sites and applications where the heat will be ducted into a building.
Specifications subject to change without notice. Use in accordance with any and all state or local codes, regulations, and/or ordinances.
Please see heater "Owner's Manual" included with each heater for a complete list of important safety information.
Important Notes:
-Not for use in residential living areas or inadequately ventilated areas.
-Proper ventilation required during operation.
-Must be plugged into an approved standard electrical outlet for operation.
Specifications
Heat Output | 125,000 BTU |
Hot-Air Flow | 1,180 CFM |
AC Power | 115V, 60Hz, 1Ø, 7.0 Amps |
Power Consumption | 460 watts |
Fan Static Pressure | 0.7in. WC |
Fuel Tank Capacity | 14.0 gallon |
Fuel Consumption | 0.9 gal./hr. |
Fuel Pump | Yes, high pressure |
Fuel Filter | Yes, heated for reliable starts |
Temperature Rise | 130°F |
Maximum Output Temperature | 240°F |
Maximum Operating Hours | 15.5 HOURS |
Maximum Duct Size (LxDiameter) | 25ft.x12in. |
Heat Source | Kerosene |
Weights & Dimensions
Net Weight | 154.00 lbs. |
Shipping Weight | 162.00 lbs. |
Length | 47.00 in. |
Width | 24.00 in. |
Height | 31.00 in. |
