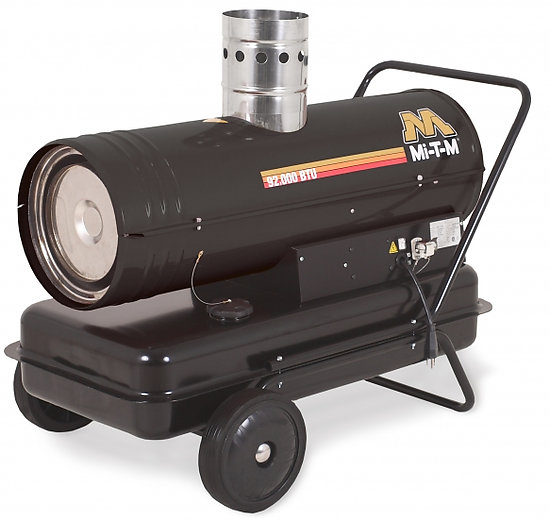

Kerosene Indirect Ductable MH-0092-0MIH

MH-0092-0MIH

Frame: Powder coated steel frame, handle and tank · Heavy-duty tires for easy mobility

Burner: Stainless-steel combustion chamber · Direct spark ignition

Motor: Heavy-duty, high quality cast aluminum electric motor

Components: Safety switch prevents overheating · Suitable for air ducting · Easy to operate controls · High capacity fuel tank · Electronic flame control · Automatic ignition · Water resistant control box · Automatic fuel shut-off · Rotary pump compressor · Compact design · Thermostat plug

Functions on: Kerosene or No. 1 and No. 2 fuel oil.

For use on construction sites and applications where the heat will be ducted into a building.

Specifications subject to change without notice. Use in accordance with any and all state or local codes, regulations, and/or ordinances.

Please see heater "Owner's Manual" included with each heater for a complete list of important safety information.

Important Notes:
-Not for use in residential living areas or inadequately ventilated areas.
-Proper ventilation required during operation.
-Must be plugged into an approved standard electrical outlet for operation.

Specifications

Heat Output 92,000 BTU
Hot-Air Flow 557 CFM
AC Power 115V, 60Hz, 1Ø, 4.0 Amps
Power Consumption 250 watts
Fan Static Pressure 0.5in. WC
Fuel Tank Capacity 12.0 gallon
Fuel Consumption 0.66 gal./hr.
Fuel Pump No
Fuel Filter No
Temperature Rise 120°F
Maximum Output Temperature 240°F
Maximum Operating Hours 18.0 hours
Maximum Duct Size (LxDiameter) 15ft.x12in.
Heat Source Kerosene

Weights & Dimensions

Net Weight 88.00 lbs.
Shipping Weight 93.00 lbs.
Length 36.60 in.
Width 22.10 in.
Height 24.60 in.
