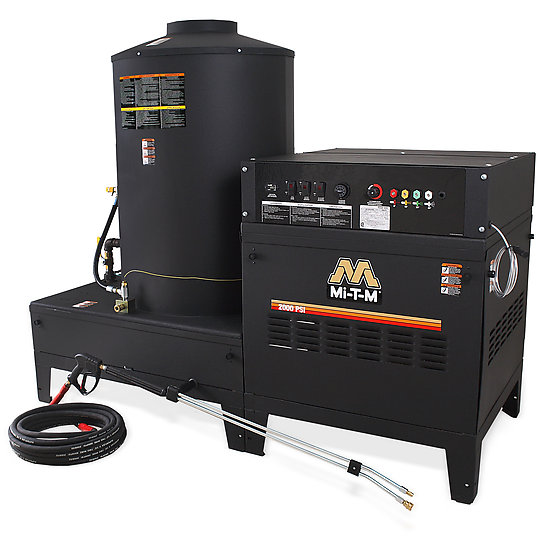

HEG-2010-1E5G

The HEG High Volume Wash Series is an excellent choice for heavy mud and solid removal applications.

Pump: Belt drive triplex General pump with ceramic plungers

Motor: Open drip-proof electric motor with manual thermal overload protection

Frame: Powder coated steel frame with removable side panels

Components: 3/4-inch schedule 80 pipe coil with 8-pancake heat exchanger · Natural gas or LP gas-fired (vapor only) natural draft with aspirating-type burner, 12-inch draft diverter · Electronic ignition with intermittent pilot · Adjustable outlet thermostat for main temperature control · Hour meter · Polyethylene float tank (8-gallon with in-line screen filter) · Time delay shutdown will automatically shut off unit when trigger is released and timer reaches setting

Miscellaneous: Unique coil design allows thermostat to sense upstream water temperature to regulate outlet temperatures preventing large temperature swings · Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes: Quick connect nozzles - 0°, 15°, 25°, 40° and fixed detergent nozzle · 50-foot x 1/2-inch steel wire-braided high pressure hose with swivel and bend restrictors · Adjustable pressure insulated dual lance with fixed detergent nozzle · Insulated trigger gun with safety lock-off

Specifications

PSI	2000
GPM	9.9
Horsepower/Motor	15.0 HP, 575V, 3Ã˜, 16.2A
Natural Gas BTU per hour	768,000
LP Gas BTU per hour	730,000
Drive Type	Belt Drive Pressure Washers
Mobility	Stationary Pressure Washers
Water Temperature	Hot Water Pressure Washers

Weights & Dimensions

Net Weight	1389.00 lbs.
Shipping Weight	1539.00 lbs.
Length	78.50 in.
Width	34.75 in.
Height	65.75 in.

Auto Start/Stop HX-0181

When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart

(1) Remote Station HX-0182

Adds control box which may be mounted away from unit to control on/off, burner and soap injection

Additional Remotes (up to 3) HX-0183

Additional remotes that may be added to unit after the first remote is installed

Liquid Propane (vapor only) HX-0189

Converts natural gas pressure washer to operate on liquid propane (vapor only)

Stainless-Steel Access Panels HX-0193

Converts powder coated painted access panels to stainless-steel material

Stainless-Steel Wrap HX-0194

Converts powder coated painted coil wrap to stainless-steel material

Balanced Temperature Control HX-0268

Thermostat in heating coil anticipates spiking temperature and cycles the burner to maintain steady outlet temperatures

Dual Gun HX-0270

Two guns may be sprayed at the same time, flow is divided between the two guns while each operator maintains equal system pressure; includes balanced temperature control option HX-0268
