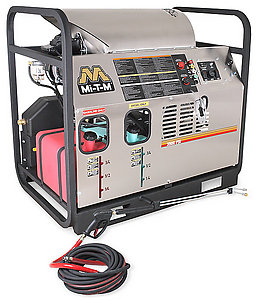

Hot Water Gasoline Belt Drive HDS-3505-0K6G
HDS-3505-0K6G
Designed with the professional contract cleaners in mind, the HDS Series is perfect for the heaviest construction applications.
Pump: Belt drive triplex piston General pump with ceramic plungers · Adjustable high pressure detergent injector
Engine: Performance-proven OHV engine with low-oil protection and electric start - battery not included
Frame: Heavy-duty powder coated steel square tube skid frame · Stainless-steel coil wrap, control panel and removable front panel
Components: Horizontal schedule 80 pipe coil · 120V/15-amp auxiliary GFCI outlet · 2900-watt generator for efficient power to the burner and controls · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel) · Three-way ball valve for inlet selection · Detergent and steam valves · Adjustable thermostat · Hour meter
Unit Includes: Quick connect nozzles - 0°, 15°, 25°, 40°, plus wet steam and fixed detergent nozzle · 50-foot x 3/8-inch steel wire-braided pressure hose · Adjustable pressure insulated dual lance with fixed detergent nozzle · Insulated trigger gun with safety lock-off
Specifications
| PSI | 3500 |
| GPM | 4.7 |
| Displacement/Engine | 624cc Kohler CH620 OHV |
| Engine Fuel Tank Capacity | 10.0 gallon |
| Burner Fuel Tank Capacity | 10.0 gallon |
| Fuel Consumption | 3.37 gph |
| BTU Per Hour | 471,800 |
| Drive Type | Belt Drive Pressure Washers |
| Mobility | Stationary Pressure Washers |
| Water Temperature | Hot Water Pressure Washers |
Weights & Dimensions
| Net Weight | 750.00 lbs. |
| Shipping Weight | 854.00 lbs. |
| Length | 50.00 in. |
| Width | 34.00 in. |
| Height | 46.00 in. |
300°F Steam Upgrade HX-0100
Steam option lowers unit pressure to 350-PSI, 240°F rise above ambient with a maximum of 300°F
Four-Point Lifting Capability HX-0147
Allows unit to be lifted by crane
Trapping Unloader HX-0151
For longer hose runs and cleaning elevated areas
All Stainless-Steel Frame HX-0197
Converts powder coated painted frame to stainless-steel material
Clutch Drive Pump HX-0228
Stops the pump from spinning in bypass mode and helps to extend the life of the pump, changes GPM to 4.3 when added to the unit
Clutch Drive Pump HX-0261
Stops the pump from spinning in by-pass and helps extend the life of the pump, standard flow rate
