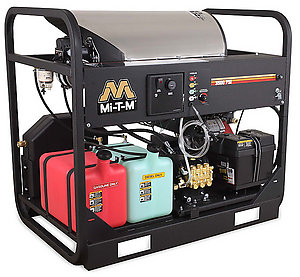

Hot Water Gasoline Belt Drive HDC-3505-1H6G
HDC-3505-1H6G
The HDC Series is the most affordable and efficient skid on the market today. The best buy for a quick return on investment.
Pump: Belt drive triplex piston General pump with ceramic plungers · Adjustable high pressure detergent injector
Engine: Performance-proven industrial gasoline engine with electric start - battery not included
Frame: Heavy-duty powder coated steel square tube skid frame · Stainless-steel coil wrap prevents rusting
Components: Stainless-steel wrap heat exchanger with 1/2-inch schedule 80 pipe coil · Polyethylene engine and burner fuel tanks · 12V Beckett burner - no need for generator - battery not included · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel) · Large polyethylene float tank
Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
Unit Includes: Quick connect nozzles 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose · Adjustable pressure insulated dual lance · Insulated trigger gun with safety lock-off
Specifications
| PSI | 3500 |
| GPM | 4.7 |
| Displacement/Engine | GX630 Honda OHV |
| Pump | General |
| Engine Fuel Tank Capacity | 10.0 gallon |
| Burner Fuel Tank Capacity | 10.0 gallon |
| Fuel Consumption | 2.76 gph |
| BTU Per Hour | 386,400 |
| Drive Type | Belt Drive Pressure Washers |
| Mobility | Stationary Pressure Washers |
| Water Temperature | Hot Water Pressure Washers |
Weights & Dimensions
| Net Weight | 725.00 lbs. |
| Shipping Weight | 844.00 lbs. |
| Length | 50.00 in. |
| Width | 34.00 in. |
| Height | 46.00 in. |
Three-Way Ball Valve HX-0130
Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball valve lever
Four-Point Lifting Capability HX-0147
Allows unit to be lifted by crane
Hour Meter HX-0156
Displays the number of hours unit has been in operation
Trapping Unloader HX-0200
For longer hose runs and cleaning elevated areas
Adjustable Temperature Control HX-0212
Operator is able to adjust outlet water temperature between 96°F-250°F
Clutch Drive Pump HX-0230
Stops the pump from spinning in bypass mode and helps to extend the life of the pump, changes GPM to 4.3 when added to the unit
Clutch Drive Pump HX-0266
Stops the pump from spinning in bypass mode and helps to extend the life of the pump, standard flow rate
