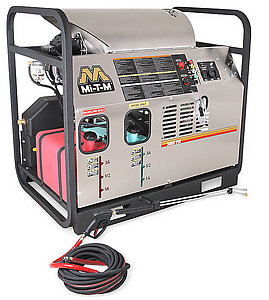

Hot Water Diesel Belt Drive HDS-3006-0B7G
HDS-3006-0B7G
Designed with the professional contract cleaners in mind, the HDS Series is perfect for the heaviest construction applications.
Pump: Belt drive triplex piston General pump with ceramic plungers · Adjustable high pressure detergent injector
Engine: Performance-proven liquid cooled Kubota diesel engine with electric start - battery not included
Frame: Heavy-duty powder coated steel square tube skid frame · Stainless-steel coil wrap, control panel and removable front panel
Components: Horizontal schedule 80 pipe coil · 120V/15-amp auxiliary GFCI outlet · 2900-watt generator for efficient power to the burner and controls · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel) · Three-way ball valve for inlet selection · Detergent and steam valves · Adjustable thermostat · Hour meter
Unit Includes: Quick connect nozzles - 0°, 15°, 25°, 40°, plus wet steam and fixed detergent nozzle · 50-foot x 3/8-inch steel wire-braided pressure hose · Adjustable pressure insulated dual lance with fixed detergent nozzle · Insulated trigger gun with safety lock-off
Specifications
| PSI | 3000 |
| GPM | 5.6 |
| Horsepower/Engine | 16.8 HP Kubota Z602 OHV |
| Engine Fuel Tank Capacity | 10.0 gallon |
| Burner Fuel Tank Capacity | 10.0 gallon |
| Fuel Consumption | 3.37 gph |
| BTU Per Hour | 471,800 |
| Drive Type | Belt Drive Pressure Washers |
| Mobility | Stationary Pressure Washers |
| Water Temperature | Hot Water Pressure Washers |
Weights & Dimensions
| Net Weight | 836.00 lbs. |
| Shipping Weight | 940.00 lbs. |
| Length | 56.50 in. |
| Width | 34.00 in. |
| Height | 46.00 in. |
300°F Steam Upgrade HX-0102
Steam option lowers unit pressure to 350-PSI, 240°F rise above ambient with a maximum of 300°F
Four-Point Lifting Capability HX-0147
Allows unit to be lifted by crane
Dual Gun HX-0149*
Two guns may be sprayed at the same time, flow is divided between the two guns while each operator maintains equal system pressure
*Requires trapping unloader. Consult factory before ordering this option.
Trapping Unloader HX-0155
For longer hose runs and cleaning elevated areas
