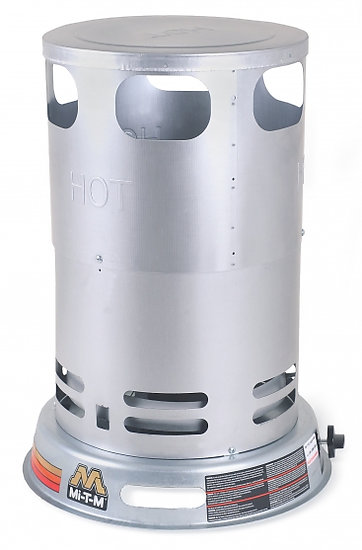

Gas-Fired Convection MH-0100-CM1N
MH-0100-CM1N
Frame: Quick assembly 2-piece burn chamber · Durable steel housing · Inner windshield protects burner flame from being extinguished · Stainless-steel burner
Heat Output: Variable heating settings · 360-degree heat radius for even heating of room
Components: Automatic shut-off if flame is extinguished · 10-foot hose and regulator · Matchless piezo spark ignitor for easy lighting
For use in workshops, construction sites, farms and loading docks with proper ventilation.
Specifications subject to change without notice. Use in accordance with any and all state or local codes, regulations, and/or ordinances.
Please see heater "Owner's Manual" included with each heater for a complete list of important safety information.
Operating times at Low, Medium and High Settings.
Important Notes:
-Not for use in residential living areas or inadequately ventilated areas.
-Proper ventilation required during operation.
-Extremely hot during operation. Keep children, animals and all combustible objects away from heater.
Specifications
Heat Output | 50-100,000 BTU |
Hot-Air Flow | 400 CFM |
Ignition Type | Control knob ignition |
Fuel | Natural Gas |
Fuel Consumption | 2.13 min./4.63 max. lb./hr. |
Operating Time (100 lb. Cylinder) | N/A |
Operating Time (40 lb. Cylinder) | N/A |
Operating Time (20 lb. Cylinder) | N/A |
Suggested Cylinder Size | N/A |
Inlet Gas Pressure | 7in. WC minimum/14in. WC maximum |
Heating Area | 3,000 sq. ft. |
Stainless-Steel Burner | Yes |
Hose & Regulator | No |
Heat Source | Gas |
Weights & Dimensions
Net Weight | 14.30 lbs. |
Shipping Weight | 21.00 lbs. |
Length | 15.70 in. |
Width | 15.70 in. |
Height | 26.40 in. |
