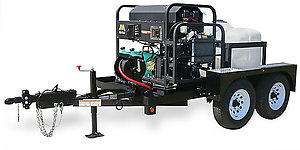

Dual Axle Trailers AW-9000-0008
AW-9000-0008
Mi-T-M Dual Axle Trailers are fully integrated and self-contained systems that are designed with a large supply tank for working at remote sites where water is not accessible. Customize to fit your application needs with a high quality Mi-T-M pressure washer to get large jobs done quickly wherever you may need to work in Iowa.
For the ultimate in portability: Purchase a single-axle trailer unit, add reliable Mi-T-M equipment to suit your application, and you are ready for the next job! Trailer units are used by heavy construction contractors, factories, well drillers, mines, military bases, road builders, contract cleaners, shipyards, municipalities and food services.
Features: Swivel jack with pad · Rubber mounted sealed lights · Tanks are enclosed in a powder coated steel frame · Will fit all Mi-T-M pressure washers · Aluminum treadplate steps for access to water tank
Accessories: Pressure washers · Hose reels
Specifications
Water Tank | 200-gallon |
Brakes | Surge |
Coupler | 2in. |
Tires | (4) ST205-75R 15in. |
Axles | (2) 3,500 lb. |
Storage Area | None |
Trailer Deck Plate | .25in. solid steel |
Angle Frame | 3in.x4.25in. |
Trailer Bed Dimensions | 5ft.x8.5ft. |
Weights & Dimensions
Net Weight | 7000.00 lbs. |
Shipping Weight | 7000.00 lbs. |
Length | 101.00 in. |
Width | 60.00 in. |
Height | 72.00 in. |
High Pressure Hose Reel - 16-Inch TX-0002
Includes the hose reel with jumper hose and mounting bracket
Low Pressure Hose Reel - 16-Inch TX-0003
Includes the hose reel with mounting bracket and plumbing
Note: 22-0136 back-flow preventor must be used with TX-0003 when used in California.
Trailer Tank Bypass TX-0005
Used on dual-axle trailers, removes float system while adding the necessary plumbing
·For use with HVS Series pressure washers
High Pressure Hose Reel - 13-Inch TX-0001
Includes the hose reel with jumper hose and mounting bracket
Trailer Hitch TX-0010
This specially designed heavy-duty, 2-inch trailer hitch has a pin-style securing mechanism and hinged ball socket with visual indication of proper closure around the ball - all to ensure a quick, easy and secure hook-up. Includes hitch with brackets and hardware.
·For use with dual-axle trailers
