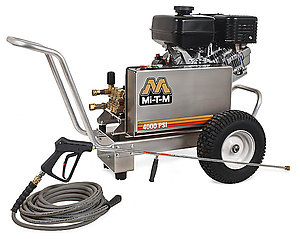

Cold Water Gasoline Belt Drive CBA-4004-1MAS
CBA-4004-1MAS
Pump: Belt drive triplex piston AR pump with ceramic plungers · Stainless-steel and brass Mi-T-M unloader with adjustable pressure · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection
Engine: Performance-proven Subaru OHC engine with low-oil protection
Frame: Patented vibration isolation plate with four rubber isolators for reduced movement · Lightweight, corrosion resistance aluminum frame and base plate with 1-1/4-inch tube handles · Two-piece belt guard for quick access to belts · Solid 7/8-inch diameter full-length threaded axle · Convenient nozzle holder for quick connect nozzles · Flat-free tires · Dual rubber isolators
Component: Dual cogged belt drive system for increased belt life
Unit Includes: Quick connect nozzles (0º, 15º, 25º and 40º) · 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors · Professional-grade insulated trigger gun with safety lock-off · 48-inch lance with rubber grip
Specifications
| PSI | 4000 |
| GPM | 3.4 |
| Displacement/Engine | 404cc Subaru OHC |
| Pump | AR |
| Unloader | Mi-T-M, adjustable pressure |
| Nozzles | 0°, 15°, 25° & 40° |
| Lance | 48in. |
| Drive Type | Belt Drive Pressure Washers |
| Mobility | Portable Pressure Washers |
| Water Temperature | Cold Water Pressure Washers |
Weights & Dimensions
| Net Weight | 165.00 lbs. |
| Shipping Weight | 215.00 lbs. |
| Length | 47.00 in. |
| Width | 27.50 in. |
| Height | 28.50 in. |
Insulated Dual Lance CX-0005
Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 48-inch
External Bypass System CX-0082
Allows more water into the system to protect from heat build-up
