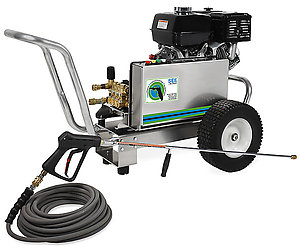

Cold Water Gasoline Belt Drive CBA-3504-1MAH

CBA-3504-1MAH

Pump: Belt drive triplex piston AR pump with ceramic plungers · Stainless-steel and brass Mi-T-M unloader with adjustable pressure · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection

Engine: Performance-proven Honda GX390 OHV engine with low-oil protection

Frame: Patented vibration isolation plate with four rubber isolators for reduced movement · Lightweight, corrosion resistance aluminum frame and base plate with 1-1/4-inch tube handles · Two-piece belt guard for quick access to belts · Solid 7/8-inch diameter full-length threaded axle · Convenient nozzle holder for quick connect nozzles · Flat-free tires · Dual rubber isolators

Component: Dual cogged belt drive system for increased belt life

Unit Includes: Quick connect nozzles (0º, 15º, 25º and 40º) · 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors · Professional-grade insulated trigger gun with safety lock-off · 48-inch lance with rubber grip

Specifications

PSI 3500
GPM 3.7
Displacement/Engine 389cc Honda GX390 OHV
Pump AR
Unloader Mi-T-M, adjustable pressure
Nozzles 0°, 15°, 25° & 40°
Lance 48in.
Drive Type Belt Drive Pressure Washers
Mobility Portable Pressure Washers
Water Temperature Cold Water Pressure Washers

Weights & Dimensions

Net Weight 165.00 lbs.
Shipping Weight 215.00 lbs.
Length 47.00 in.
Width 27.50 in.
Height 28.50 in.

Insulated Dual Lance CX-0005

Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 48-inch

External Bypass System CX-0082

Allows more water into the system to protect from heat build-up
