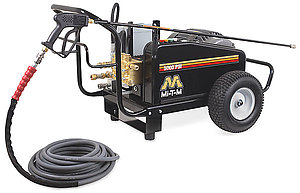

Cold Water Electric Belt Drive CW-5004-0ME3
CW-5004-0ME3
Pump: Belt drive triplex piston General pump with ceramic plungers · Stainless-steel and brass unloader · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection · External bypass system creates less heat build-up
Motor: Totally enclosed fan-cooled electric motor with thermal overload protection · 10-foot power cord
Frame: Powder coated steel frame and base plate with tube handles · Convenient gun/wand holder and hose wrap · Solid steel threaded axle · Dual rubber isolators · Pneumatic tires · Totally enclosed powder coated steel belt guard
Component: Heavy-duty dual cogged belt system and cast-iron pulleys
Unit Includes: Quick connect nozzles (0º, 15º, 25º and 40º) · 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors · Professional-grade insulated trigger gun with safety lock-off · 48-inch lance with rubber grip
Specifications
| PSI | 5000 |
| GPM | 4.0 |
| Horsepower/Motor | 15.0 HP, 230V, 3Ø, 40.0A or 15.0 HP, 460V, 3Ø, 20.0A |
| Pump | General |
| Unloader | Factory preset |
| Plug Type | NEMA 15-50P |
| Nozzles | 0°, 15°, 25° & 40° |
| Lance | 48in. |
| Drive Type | Belt Drive Pressure Washers |
| Mobility | Portable Pressure Washers |
| Water Temperature | Cold Water Pressure Washers |
Weights & Dimensions
| Net Weight | 431.00 lbs. |
| Shipping Weight | 505.00 lbs. |
| Length | 45.50 in. |
| Width | 32.50 in. |
| Height | 30.00 in. |
Insulated Dual Lance CX-0005
Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 48-inch
460V, 3-Phase Models CX-0057
For when you have 460V of power available
Stationary Option CX-0094
This option will remove the existing tall handle and wheels, which will be replaced with a short handle and rubber feet for stationary applications
