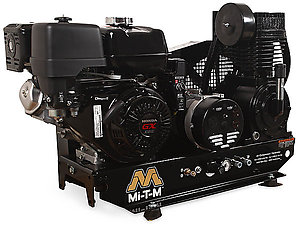

Base Mount Two Stage Gasoline AG2-SS14-B^
AG2-SS14-B
Your air compressor/generator will run your air and electric tools from one convenient machine. In times of power failure, use the generator as a backup power source.
Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator: Brushless alternator · Total Harmonic distortion (THD) less than 5% · 100% copper windings · Comes standard with (2) 120V, 20A and (1) 240V, 20A receptacles
Frame: 3/16-inch base plated to reduce vibration · 16-gauge powder coated two-piece belt guard
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16.5-inch fly wheel · Quality pilot valve unloader
*Equipped with 150-PSI maximum rated regulator.
^Option AX-0065 cannot be mounted at the factory but can be shipped with the unit for custom mounting. Consult factory for more information.
Specifications
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI | 15.7 |
| Alternator Wattage/Maximum Output | 4000 watts |
| Alternator Wattage/Continous with Compressor On-Load | 2300 watts |
| Alternator Wattage/Continous with Compressor Off-Load | 3500 watts |
| Receptacles | (2) NEMA 5-20R, (1) NEMA L6-20R |
| Displacement/Engine | 404cc Subaru EX40 OHC |
| Compressor | Two Stage, cast iron |
| Mobility | Stationary Air Compressor/Generators |
| Stage | Two Stage Air Compressor/Generators |
Weights & Dimensions
| Net Weight | 325.00 lbs. |
| Shipping Weight | 390.00 lbs. |
| Length | 47.00 in. |
| Width | 22.00 in. |
| Height | 28.00 in. |
Electric Start (battery, box and cables not included) AX-0062
For easy starting
Lifting Hook AX-0063
For easier portability
Electric Start (battery box and cables included, battery not included) AX-0065
For easy starting
Idle Down AX-0069
When activated it automatically throttles down engine to conserve fuel, includes electric start - battery not included
