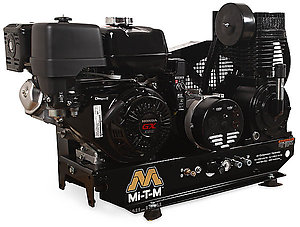

AG2-SK14-B

Your air compressor/generator will run your air and electric tools from one convenient machine. In times of power failure, use the generator as a backup power source.

Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brushless alternator · Total Harmonic distortion (THD) less than 5% · 100% copper windings · Comes standard with (2) 120V, 20A and (1) 240V, 20A receptacles

Frame: 3/16-inch base plated to reduce vibration · 16-gauge powder coated two-piece belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16.5-inch fly wheel · Quality pilot valve unloader

*Equipped with 150-PSI maximum rated regulator.
^Option AX-0072 cannot be mounted at the factory but can be shipped with the unit for custom mounting. Consult factory for more information.

Specifications

CFM @ 90 PSI	16.4
CFM @ 175 PSI	15.7
Alternator Wattage/Maximum Output	4000 watts
Alternator Wattage/Continous with Compressor On-Load	2300 watts
Alternator Wattage/Continous with Compressor Off-Load	3500 watts
Receptacles	(2) NEMA 5-20R, (1) NEMA L6-20R
Displacement/Engine	429cc Kohler CH440 OHV
Compressor	Two Stage, cast iron
Mobility	Stationary Air Compressor/Generators
Stage	Two Stage Air Compressor/Generators
