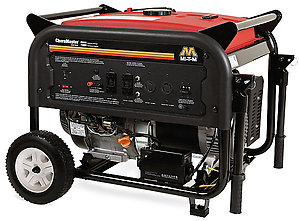

GEN-8000-0MME

Engine: Mi-T-M OHV engine low-oil shutdown engine · Automatic idle control · Electric start (battery included)

Alternator: Brushed 120V/240V alternator · Copper and aluminum windings · Total harmonic distortion (THD) less than 6%

Frame: Low profile, compact design · Wraparound frame with 1-inch steel tubing · Wheel kit with tires and rubber gripped handles

Components: Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles · Large low-tone mufflers · Engine on/off switch · Fuel shut-off valve · DC/battery charging

*Dimensions include the wheel kit with the handles in the down position.

Specifications

Maximum AC Output	8000 watts
Rated AC Output	7000 watts
Displacement/Engine	420cc Mi-T-M OHV with electric start - battery included
Alternator	Brushed 120V/240V, 60Hz
Maximum Amps (120V/240V)	66.6/33.3
Continuous Amps (120V/240V)	58.3/29.2
Receptacles	(2) 120V 20A GFCI duplex; (1) 120V 30A twist lock; (1) 120V/240V 30A twist lock
Circuit Breakers	(1) Main circuit breaker; (2) 20A circuit breaker, single pole; (1) 10A DC breaker
Rated Speed	3600 RPM
Fuel Capacity	6.6 gallon
Run Time (at full load)	6.0 Hours
Idle Control	Yes
Wheel Kit	Yes, includes tires and rubber gripped handles
