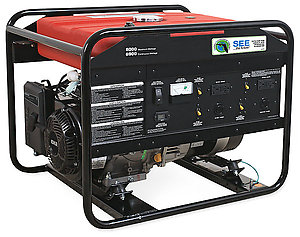

GEN-8000-0MKO

Engine: Low-oil shutdown engine · Idle control

Alternator: Brushless 120V/240V alternator · Total harmonic distortion (THD) less than 5% · 100% copper windings

Frame: Heavy-duty wraparound frame with 1-inch powder coated steel tubing · Low profile, compact design · Angled isolator design features four neoprene isolators

Components: Large low-tone mufflers to reduce noise to lowest level possible · Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles · Fuel shut-off valve · Easy-to-read fuel gauge · Voltmeter/hour meter · Fuel tanks are powder coated outside, zinc-plated inside to prevent rusting · Heavy-duty industrial air cleaners hold up under extreme conditions

Miscellaneous: USDA/USFS-approved spark arrestors · Circuit breaker protected

Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.

*Available with electric start - battery included. See GEN-8000-0MKE

Specifications

Maximum AC Output	8000 watts
Rated AC Output	6900 watts
Displacement/Engine	429cc Kohler CH440 OHV
Alternator	Brushless 120V/240V, 60Hz
Maximum Amps (120V/240V)	66.7/33.3
Continuous Amps (120V/240V)	57.5/28.75
Receptacles	(2) 120V 20A GFCI duplex; (1) 120V 30A twist lock; (1) 120V/240V 30A twist lock
Circuit Breakers	(2) 20A toggle circuit breaker, single pole; (1) 30A toggle circuit breaker, double pole; (1) 30A toggle circuit breaker, single pole
Rated Speed	3600 RPM
Decibel Rating	78.2
Fuel Capacity	7.3 gallon
Run Time (at full load)	6.9 hours
Idle Control	Yes
