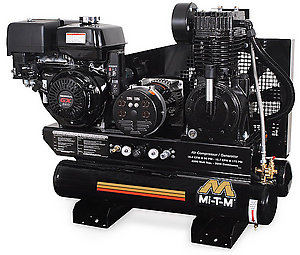

AG2-SM14-08M1

Compressor Pump: Quality cast iron two stage compressor · Durable stainless-steel braided discharge hose for longer life · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Large canister intake filter

Generator: Brushless alternator · Industrial 4000-watt generator with (2) 120V, 20A and (1) 240V, 20A receptacles· Total harmonic distortion (THD) less than 5% · 100% copper windings

Engine: Industrial Mi-T-M OHV Engine

Frame: Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16.5-inch flywheel for extra cooling and longer life · Quality pilot valve unloader · Belt tightening system pulls engine straight to ensure constant belt alignment

*Equipped with 150-PSI maximum rated regulator.
^Option AX-0074 cannot be mounted at the factory but can be shipped with the unit for custom mounting. Consult factory for more information.

Specifications

CFM @ 90 PSI	16.4
CFM @ 175 PSI	15.7
Alternator Wattage/Maximum Output	4000 watts
Alternator Wattage/Continous with Compressor On-Load	2300 watts
Alternator Wattage/Continous with Compressor Off-Load	3500 watts
Receptacles	(2) NEMA 5-20R, (1) NEMA L6-20R
Displacement/Engine	420cc Mi-T-M OHV
Compressor	Two Stage, cast iron
Mobility	Stationary Air Compressor/Generators
Stage	Two Stage Air Compressor/Generators
