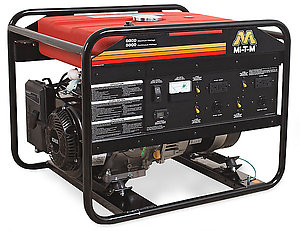

GEN-6000-0MK0

Engine: Low-oil shutdown engine· Idle control

Alternator: Brushless 120V/240V alternator· Total harmonic distortion (THD) less than 5%· 100% copper windings

Frame: Heavy-duty wraparound frame with 1-inch powder coated steel tubing· Low profile, compact design· Angled isolator design features four neoprene isolators

Components: Large low-tone mufflers to reduce noise to lowest level possible· Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles· Fuel shut-off valve· Easy-to-read fuel gauge· Voltmeter/hour meter· Fuel tanks are powder coated outside, zinc-plated inside to prevent rusting· Heavy-duty industrial air cleaners hold up under extreme conditions

Miscellaneous: USDA/USFS-approved spark arrestors· Circuit breaker protected

Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.

Specifications

Maximum AC Output	6000 watts
Rated AC Output	5000 watts
Displacement/Engine	429cc Kohler CH440 OHV
Alternator	Brushless 120V/240V, 60Hz
Maximum Amps (120V/240V)	50.0/25.0
Continuous Amps (120V/240V)	41.7/20.8
Receptacles	(2) 120V 20A GFCI duplex; (1) 120V 30A twist lock; (1) 120V/240V 20A twist lock
Circuit Breakers	(1) Main circuit breaker; (2) 20A toggle circuit breaker, single pole; (1) 20A toggle circuit breaker, double pole; (1) 30A toggle circuit breaker, single pole
Rated Speed	3600 RPM
Decibel Rating	77.1
Fuel Capacity	7.3 gallon
Run Time (at full load)	8.0 hours
Idle Control	Yes
