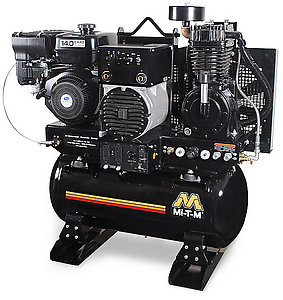

30-Gallon Two Stage Gasoline AGW-SR14-30M

AGW-SR14-30M

Offering the convenience of three machines in one, this model combines a 170A arc welder, two-stage air compressor and a 5000-watt generator all in one piece of equipment. Save space, save money and reduce your load capacity with this new combination unit, and with only one engine you will save time on service parts and maintenance as well.

Operation
Generator Mode
AC current only · Selector switch set to idle down –engine will idle down when generator is not in use and tank pressure is 175 PSI · Switch is set to full throttle –engine will run full throttle continuously

Welder Mode
DC current only · Engine must be running full throttle · Selector switch must be set to full throttle

Engine: Performance-proven engine with low-oil shutdown · Electric start (battery and cables not included)

Compressor Pump: Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Durable stainless-steel braided discharge hose for longer life

Generator : Brush-type 2 pole 12V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings

Welder: Amperage selection switch, 170 maximum

Frame : Powder coated ASME coded 30-gallon receiver tank · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts

Components: Belt tightening system pulls engine straight to ensure constant belt alignment · Manual drain valves for proper maintenance · Regulator and two gauges for tank and outlet pressure · 16.5-inch fly wheel for extra cooling and longer life · Quality pilot valve unloader

*Equipped with 150-PSI maximum rated regulator.

Specifications

Displacement/Engine 404cc Subaru EX40 OHC with electric start - battery and cables not included
Rated Speed 3600 RPM
CFM @ 90 PSI 16.4
CFM @ 175 PSI 15.7
Compressor Two Stage, cast iron
Tank Size 30-gallon receiver tank
Maximum AC Output 5000 watts
Rated AC Output 4500 watts
Alternator Wattage Continous On-Load @ 90 PSI 3000 watts
Alternator Wattage Continous On-Load @ 175 PSI 2500 watts
Frequency/Voltage 60Hz/120V/240V
Maximum Amps (120V/240V) 41.7/20.8 OFF-LOAD
Continuous Amps (120V/240V) 35.7/18.7 off-load
Receptacles (2) 120V 20A GFCI duplex; (1) 120V/240V 20A twist lock
Duty Cycle (10 Minute Run Time) 150A @ 100%
DC Voltage 50-170A working range
Fuel Tank 1.85 gallon

Weights & Dimensions

Net Weight 585.00 lbs.
Shipping Weight 650.00 lbs.
Length 46.00 in.
Width 22.00 in.
Height 47.00 in.

Vibration Isolator Pads IX-0001

Isolators protect the unit from vibration during use

Battery Tray, Box and 2-Foot of Cables Included AX-0070

Attaches to engine side of unit
