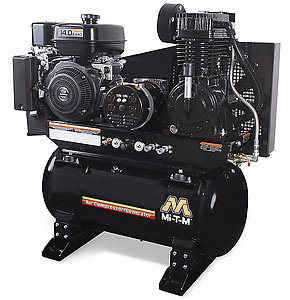

30-Gallon Two Stage Gasoline AG2-SK14-30M
AG2-SK14-30M
Compressor Pump: Cast iron head for heat dissipation. Large canister intake filter. Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure. Splash lubricated cast iron crankcase to extend the hours of performance. Durable stainless-steel braided discharge hose for longer life
Engine: 429cc Kohler CH440 OHV
Generator: Brushless alternator. Industrial 3500 or 4000-watt generator with (2) 120V, 20A and (1) 240V, 20A receptacles · Total harmonic distortion (THD) less than 6%. 100% copper windings
Frame: Powder coated ASME coded 30-gallon reciever tank. 3/16-inch base plate to reduce vibration. 14-gague powder coated two-piece belt guard with 1/4-turn release for quick access to belts
Components: Belt tightening system pulls engine straight to ensure constant belt alignment. Quality pilot valve unloader. Regulator and two gagues for tank and outlet pressure. Manual drain valves for proper maintenance. 16.5 inch fly wheel for extra cooling and longer life
*Equipped with 150-PSI maximum rated regulator.
Specifications
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI | 15.7 |
| Alternator Wattage/Maximum Output | 4000 watts |
| Alternator Wattage/Continous with Compressor On-Load | 2300 watts |
| Alternator Wattage/Continous with Compressor Off-Load | 3500 watts |
| Receptacles | (2) NEMA 5-20R, (1) NEMA L6-20R |
| Displacement/Engine | 429cc Kohler CH440 OHV |
| Compressor | Two Stage, cast iron |
| Mobility | Stationary Air Compressor/Generators |
| Stage | Two Stage Air Compressor/Generators |
Weights & Dimensions
| Net Weight | 450.00 lbs. |
| Shipping Weight | 550.00 lbs. |
| Length | 40.00 in. |
| Width | 24.50 in. |
| Height | 45.00 in. |
Lifting Hook AX-0063
For easier portability
Vibration Isolator Pads IX-0001
Isolators protect the unit from vibration during use
Electric Start (battery, box, and cables not included) AX-0071
For easy starting
Electric Start (battery box and cables included, battery not included) AX-0072
For easy starting
Battery Tray, Box and 2-Foot of Cables Included AX-0070
Attaches to engine side of unit
