30-Gallon Two Stage Gasoline AG2-SH13-30M
AG2-SH13-30M
Compressor Pump: Quality cast iron two stage compressor · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Large canister intake filter · Durable stainless-steel braided discharge hose for longer life
Engine: Honda GX390 OHV engine

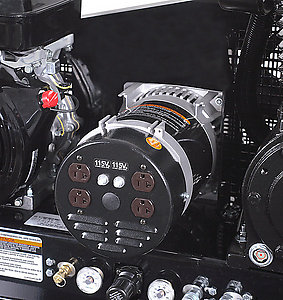

Generator: Brushless alternator · Industrial 4000-watt generator with (2) 120V, 20A and (1) 240V, 20A receptacles · Total harmonic distortion (THD) less than 6% · 100% copper windings
Frame: Powder coated ASME coded 30-gallon receiver tank · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts
*Equipped with 150-PSI maximum rated regulator.
Specifications
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI | 15.7 |
| Alternator Wattage/Maximum Output | 4000 watts |
| Alternator Wattage/Continous with Compressor On-Load | 2300 watts |
| Alternator Wattage/Continous with Compressor Off-Load | 3500 watts |
| Receptacles | (2) NEMA 5-20R, (1) NEMA L6-20R |
| Displacement/Engine | 389cc Honda GX390 OHV |
| Compressor | Two Stage, cast iron |
| Mobility | Stationary Air Compressor/Generators |
| Stage | Two Stage Air Compressor/Generators |
Weights & Dimensions
| Net Weight | 450.00 lbs. |
| Shipping Weight | 550.00 lbs. |
| Length | 40.00 in. |
| Width | 24.50 in. |
| Height | 45.00 in. |
Lifting Hook AX-0063
For easier portability
Electric Start (battery box and cables included, battery not included) AX-0064
For easy starting
Electric Start (battery, box and cables not included) AX-0019
For easy starting
Vibration Isolator Pads IX-0001
Isolators protect the unit from vibration during use
Idle Down AX-0068
When activated it automatically throttles down engine to conserve fuel, includes electric start - battery not included
Battery Tray, Box and 2-Foot of Cables Included AX-0070
Attaches to engine side of unit
Remote Start/Choke IX-0055
6-foot wire extension for key switch
