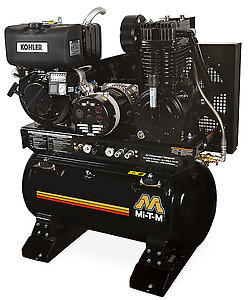

AG2-SKD9-30M

The new 30-gallon diesel air compressor/generator is perfect for agricultural, construction and industrial applications that require both electrical power and compressed air.

Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · Comes standard with (2) 120V, 20A and (1) 240V, 20A receptacles

Engine: Electric start - battery, box and cables not included · Glow plug equipped engine for easy starting in cold temperatures

Frame: Powder coated ASME coded 30-gallon receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16-1/2 inch fly wheel · Quality pilot valve unloader

*Equipped with 150-PSI maximum rated regulator.

Specifications

CFM @ 90 PSI	16.4
CFM @ 175 PSI	15.7
Alternator Wattage/Maximum Output	3000 watts
Alternator Wattage/Continous with Compressor On-Load	2300 watts
Alternator Wattage/Continous with Compressor Off-Load	2750 watts
Receptacles	(2) NEMA 5-20R, (1) NEMA L6-20R
Horsepower/Engine	9.1 HP Kohler KD440 OHV
Compressor	Two Stage, cast iron
Mobility	Stationary Air Compressor/Generators
Stage	Two Stage Air Compressor/Generators
