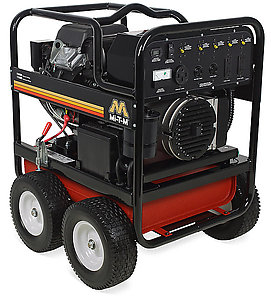

GEN-13000-1MSE

Engine: Subaru OHV low-oil shutdown engine with electric start (battery included) · Idle control

Alternator: Brushless 120V/240V alternator · Total harmonic distortion (THD) less than 5% · 100% copper windings

Frame: Reinforced 1 1/4-inch powder coated steel tube frame with center balanced lifting hook · Solid steel threaded axles · Locking tire brake · Pneumatic tires

Components: Easy-to-read fuel gauge · Voltmeter/hour meter · Fuel tanks are powder coated outside, zinc-plated inside to prevent rusting · Heavy-duty industrial air cleaners hold up under extreme conditions · Large low-tone mufflers to reduce noise to lowest level possible · Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles

Miscellaneous: USDA/USFS-approved spark arrestors · Circuit breaker protected

Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.

Specifications

Rated AC Output	11500 watts
Maximum AC Output	13000 watts
Displacement/Engine	650cc Subaru OHV with electric start - battery included
Alternator	Brushless 120V/240V, 60Hz
Maximum Amps (120V/240V)	108.3/54.2
Continuous Amps (120V/240V)	95.8/47.9
Receptacles	(2) 120V 20A GFCI duplex; (1) 120V 30A twist lock; (1) 120V/240V 30A twist lock; (1) 120V/240V 50A
Circuit Breakers	(2) 20A toggle circuit breaker, single pole; (1) 30A toggle circuit breaker, single pole; (1) 30A toggle circuit breaker, double pole; (1) 50A toggle circuit breaker, double pole
Rated Speed	3600 RPM
Decibel Rating	77.5
Fuel Capacity	13.2 gallon
Run Time (at full load)	8.8 hours
Idle Control	Yes
